Description

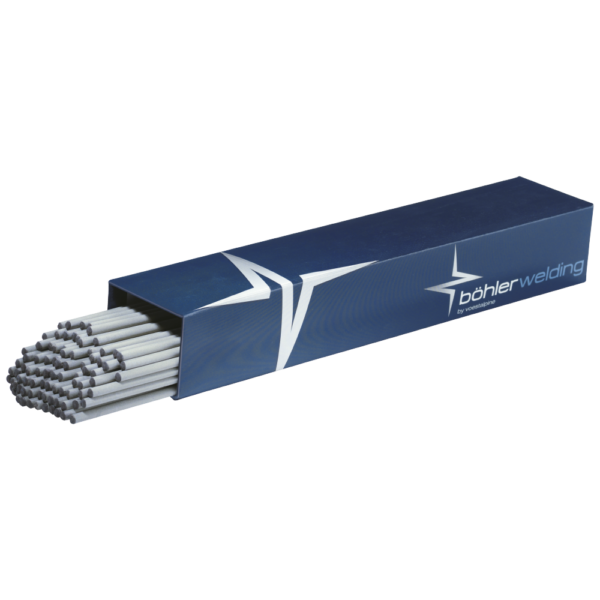

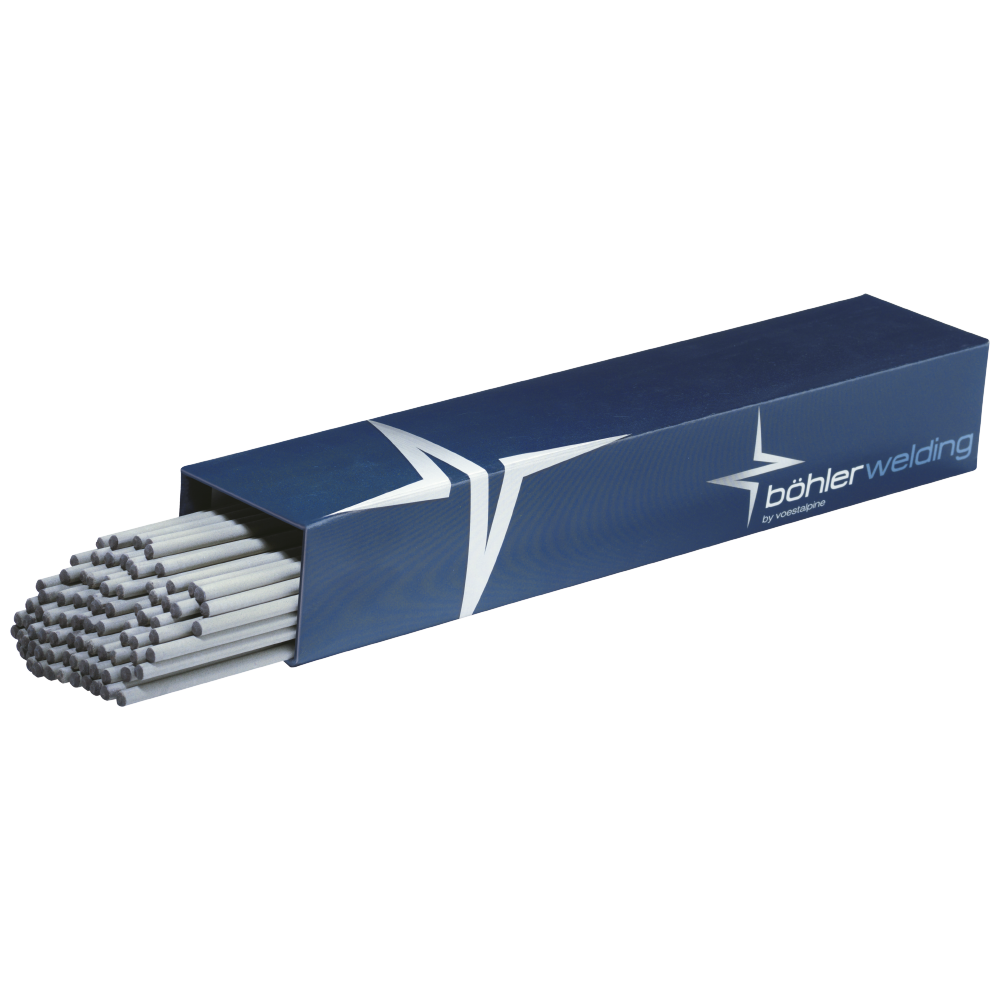

Classification: E6010
- Diameter 2.5mm 7.3kg carton – Part No: BOH-E6010CEL70-2.5-47028
- Diameter 3.2mm 8.8kg carton – Part No: BOH-E6010CEL70-3.2-46930
- Diameter 4.0mm 9.0kg carton – Part No: BOH-E6010CEL70-4.0-46888
Cellulose covered electrode for vertical down circumferential welds in pipeline constructions. Highly economical compared with vertical-up welding. Suitable for root runs, hot passes, filler and cover layers. Excellent weldability in root pass welding (DC – ); also in the vertical up position.
Base Materials:
S235JR, S275JR, S235J2G3, S275J2G3, S355J2G3, P235GH, P265GH, P355T1, P235T2- P355T2, L210NB –L390NB, L290MB – L390MB, P235G1TH, P255G1TH L210NB-L385NB, L290MB-L385MB, P235G1TH, P255G1TH, root up to L555NB, L555MB
API Spec. 5 L: A, B, X 42, X 46, X 52, X 56, root up to X 80
Specifications:
| SKU | BOH-PhoenixCel70 |
| Brand | BOHLER |
| WIRE TYPE | Stick Electrode |
| Unit Of Measure | ea |
